Current

ToolBox 2.0

FM2M ToolBox 2 dashboard

Required EdgeTX version: 2.11 or above

Supported radios: 480x272, 480x320, 800x480 Color LCD radios

  • RadioMaster: GX15 / TX15 / TX16S / TX16S MAX / TX16S Mark II / TX16S MK3 / TX16S MK3 MAX
  • Jumper: T15 / T15 Pro / T16 / T16 Plus / T16 Pro Hall / T18 / T18 Lite / T18 Pro / T20 V2 / T22
  • FrSky: X10 / X10S / X10 Express / X10S Express / X12S / X12S-IRSM
  • iFlight: Commando14
  • HelloRadioSky: V15 / V16

Supported protocol versions: CRSF 6.14+, ELRS 3.0+, FrSky D16 ACCST & R9

Supported firmwares: Betaflight 4.5+ or INAV 8.0+

Notes

  • If your radio is not listed, it will not work.
  • Downloaded version works in LITE mode. To unlock the complete PRO feature set, support FM2M and upgrade.
Download ZIP

Early Preview

ToolBox 2.1

ToolBox 2.1 new 320 by 240 interface on HelloRadioSky V12 ToolBox 2.1 Gimbal LED indicators on RadioMaster TX15 ToolBox 2.1 Battery Cells monitor with RadioMaster ERS-CV01 on TX15 ToolBox 2.1 custom-graphics dashboard panel on RadioMaster TX15 ToolBox 2.1 unified error screen
What’s new

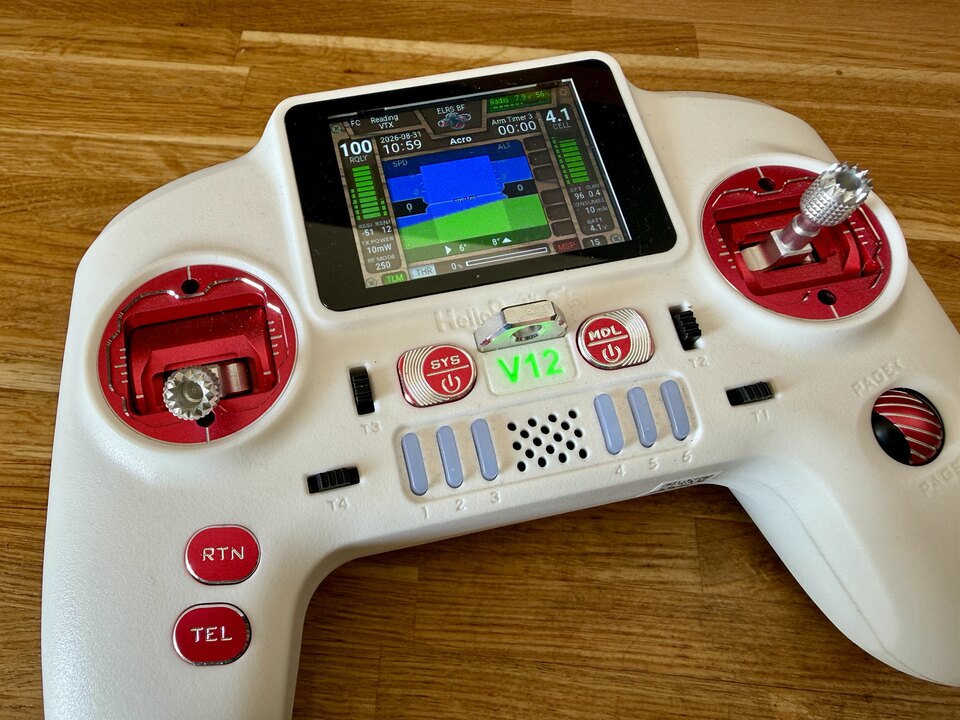

  • New 320×240 interface for supported radios.

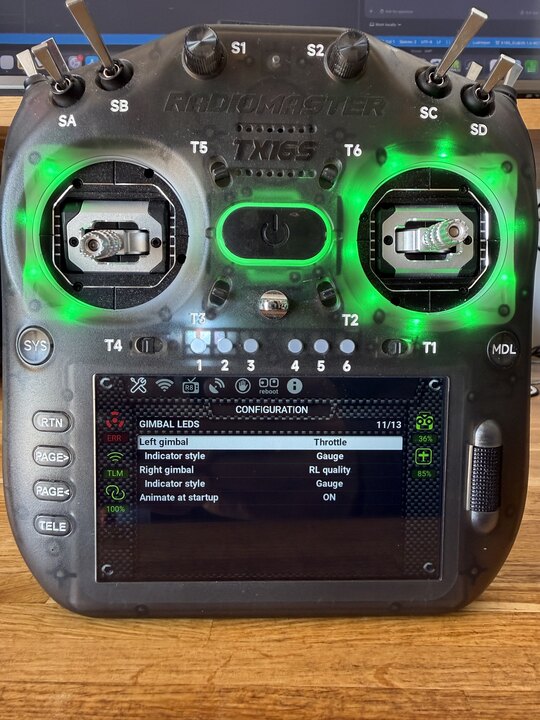

  • Gimbal LED indicators for arming, link quality, GPS, and throttle status.

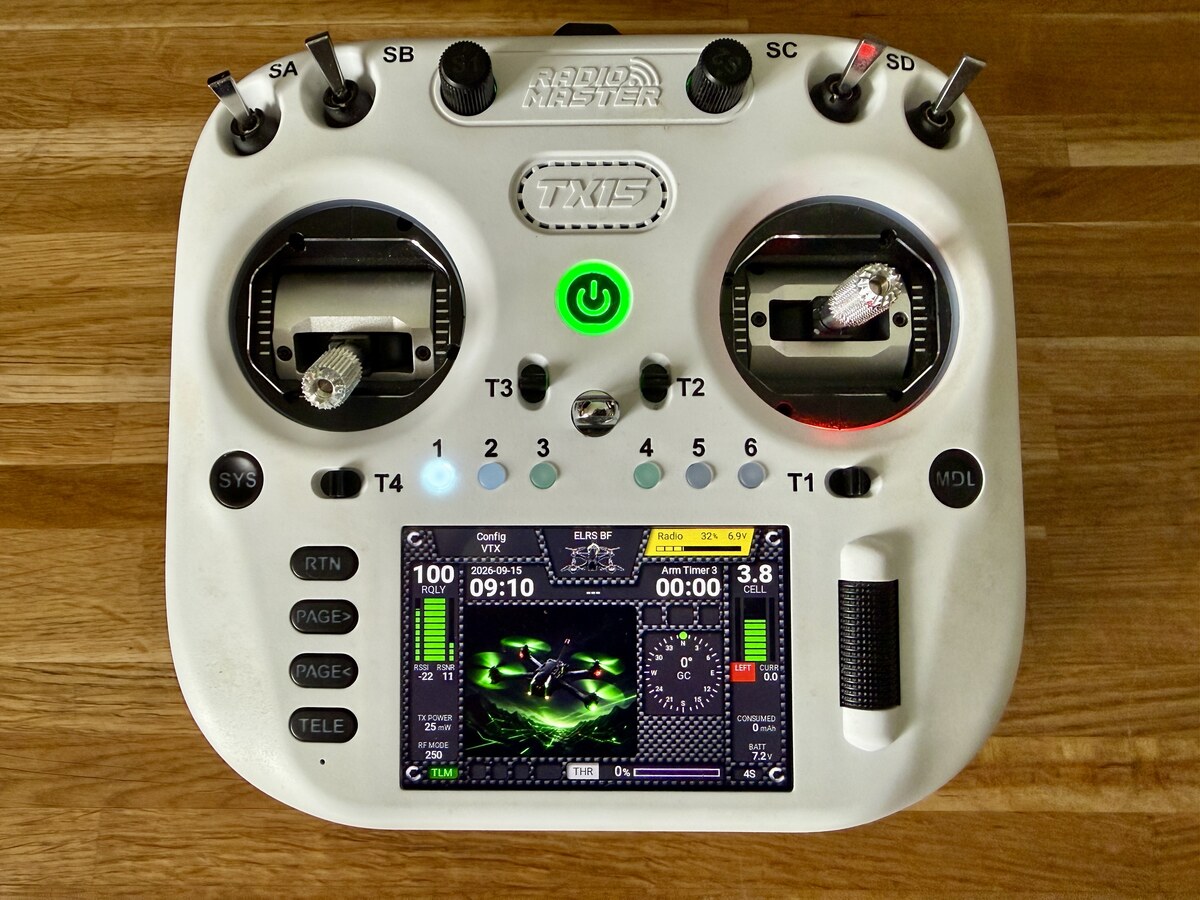

  • Optional custom-graphics main dashboard panel.

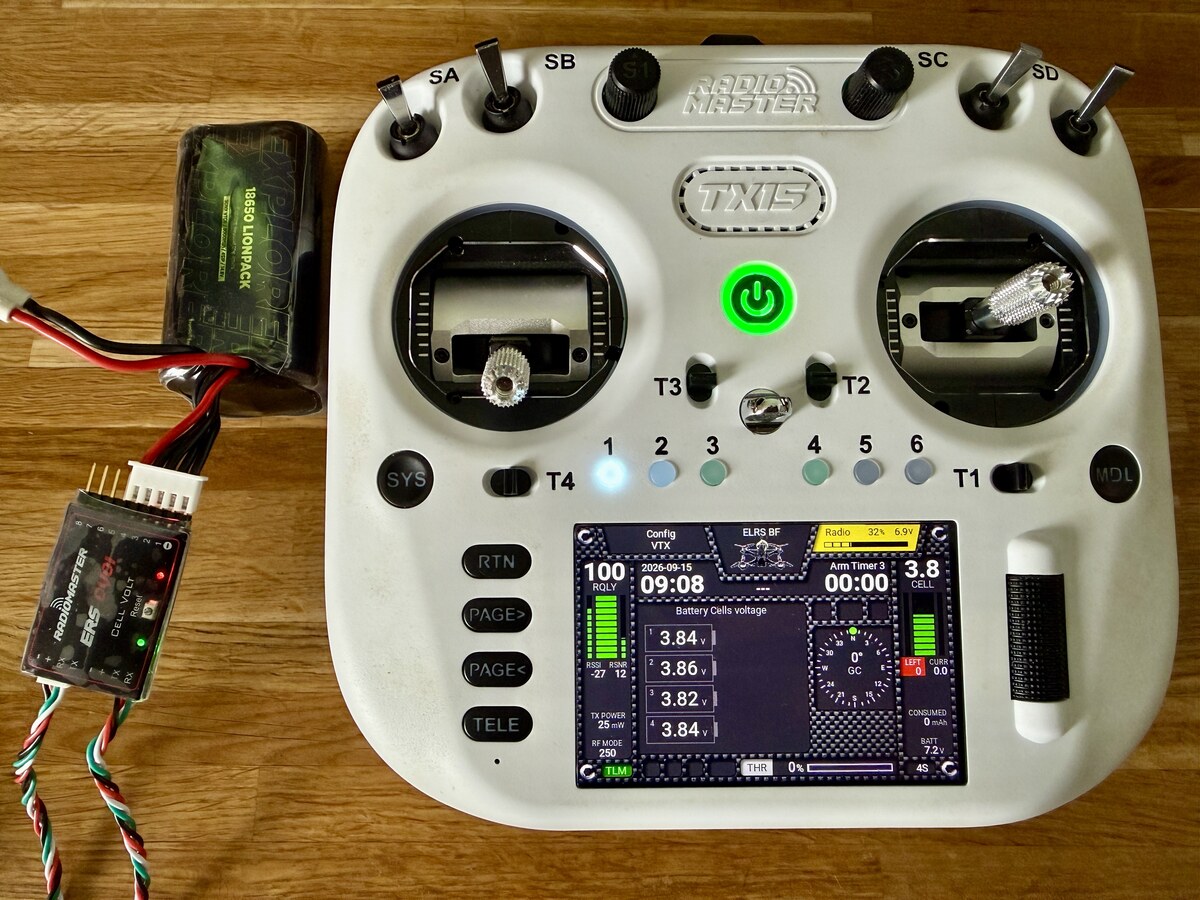

  • Battery Cells monitor for the RadioMaster ERS-CV01 over ELRS, supporting packs up to 8S.
  • Cell-count priority uses the physical sensor first, then the selected Battery Favourite, and finally automatic detection.

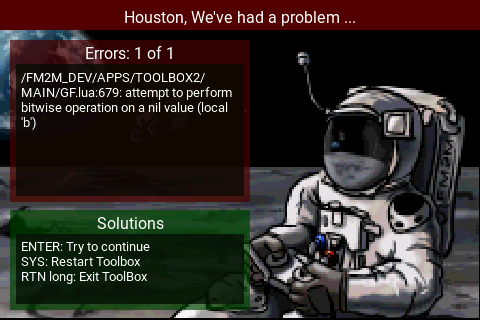

  • Unified error screen with continue, restart, and exit controls.
  • ELRS 4.x RF mode selection and RFMD display support.
  • Improved CRSF/MSP buffering and handling of unknown Betaflight arm-stop codes.

Available to FM2M Patreon members

As a thank-you to my patrons, ToolBox 2.1 is available as an Early Preview until it becomes the current public release. Patreon members are automatically granted access to the special #early-access-releases channel on the FM2M Discord server, where they can download the latest package.

Join FM2M on Patreon Open FM2M Discord
